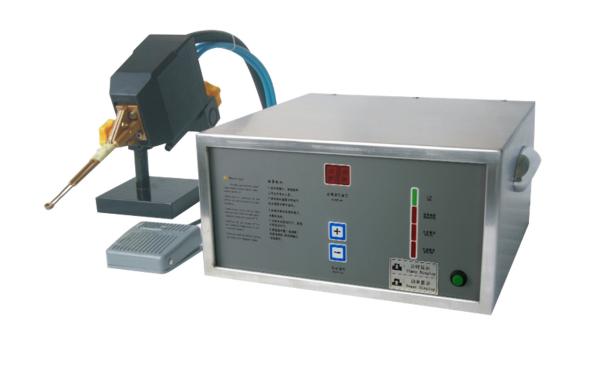

Ultra High Frequency Induction Heating Machine for
Copper.Steel.Stainless Steel Strip And Belt Heating
APPLICATION
Induction brazing is a welding method based on high frequency,
medium frequency or industrial frequency induction current. UHF
water-cooled induction brazing machines are suitable for welding
thin-walled pipes. Use coaxial cables and split induction rings to
weld in the field away from the power source.
Induction welding has the advantages of high heat generation, high
productivity, stable operation, 24-hour continuous work and high
welding quality. With automatic and manual welding function, the
operation is simple and practical. Induction welding is the first
choice for products with large output.
High frequency induction brazing machines include 3.2kw, 4.5kw,
6kw, 8kw, 8kw, 12kw and other customised equipment. With
synchronised discharge, preheating, welding, pressure holding and
unloading functions, it saves time and improves production
efficiency.
1. High-frequency brazing of carbide tipped saw blade teeth. 2.
2. Welding and annealing of spectacle frames and related
accessories.
3. high-frequency brazing for gold, silver, copper and steel
jewellery.
4. High-frequency brazing for watch case.
5. High frequency brazing of very fine electronic components.
6. High frequency silver brazing for fine metal joints.
7. High frequency brazing and annealing of wire or strip.
8. High frequency induction heating soldering for various tools.
9. Induction hardening of tools and cutters.
10. High frequency induction heating and tempering for any metal
springs or plates or strips.
| MODEL NO. | YY-UHF3.2 | YY-UHF4.5 | YY-UHF06 | YY-UHF08 | YY-UHF06-1 | YY-UHF02 | YY-UHF12 |
| Maxi Oscillating Power | 3.2kw | 4.5kw | 6kw | 8kw | 6kw | 6kw | 12kw |
| Oscillating Frequency | 400KHZ-11MHz | 400KHZ-11MHz | 200-400KHz |
| Input Voltage | Single Phase 220V±10% |
| Loading | 80%(Need Interval during working) | 100%(24 hour continuously work) |
| Input Current Frequency | 50Hz or 60Hz |
| Heating/Retaining Time | 1-<10S | 1-99.9 seconds or N |
| Cooling Water Temperature | 5-50℃ |
| Cooling Water Desire | 0.05-0.2MPA 2L/Min | 0.05-0.2MPA 4L/Min |
| Net Weight(KCs) | 18 | 18 | 18 | 19 | 35 | 39 | 44 |
.
Main features
1.UHF up to 1.1MHz, the main parts and components imported from
Germany high-tech products.
2. Small size and light weight. Easy to be carried by 1 worker.
3.Stable and reliable function.
4.Durable for a long time. Some users have been using it for very
10 years, but still working in good condition.
The UHF induction heating brazing machine has been widely used in
the welding of high-grade spectacle frames, gold and silver
jewellery and all kinds of handicrafts, especially suitable for
precision small parts. If you are looking for UHF quenching
(brazing) equipment from reliable manufacturers, welcome to contact
us for more information!
RFQ
1. Question: Generic Induction heaters: (one size and design fits
all). Is this the case?
Answer: Heating different metals to different temperatures require
matching the induction system to the application. Choice of the
correct frequency, correct coil size and shape and adequate power
level are always important. Often engineers think they can just
throw a lot of heating power at a job and lucky results will
happen. More likely, the part will not heat to the required
temperature or internal components will fail from high circulating
voltages.
2. Question: Are domestic suppliers and their engineering staff
better able to service and supply parts for Induction units used in
a factory floor environments where downtime due to component
failure cannot be tolerated?
Answer: Answer is obvious, having a staff to assist you in downtimes is a
high priority and something that we take pride in providing for our
customers.
